Based on years of reliable and repeatable BTU measurement using the Daniel Danalyzer GC platform, please see our current line of Gas and Liquid Chromatographs.

NGC_Chain_of_Custody_Banner_Interactive_522x146

Process Gas Chromatographs are designed for applications within processing facilities and used in a variety of refining, petrochemical, power, and environmental applications where selected components in gaseous or liquid streams must be precisely monitored on a continuous basis.
Danalyzer natural gas chromatographs are engineered for applications where critical gas measurement is needed, including C6+ BTU/CV for custody transfer, C9+ analysis with hydrocarbon dew point calculations, trace contaminant monitoring (including C6+ with H2S) for pipeline integrity, product quality for LNG or NGL’s, and other customized applications for your natural gas analysis needs.

With over 3,000 CEMS installations in the field worldwide, Rosemount Analytical combines the expertise and field-proven technologies with the most rugged sample conditioning and extraction systems in the industry to provide superior measurement accuracy and repeatability. Designed in consideration of CEM regulations as specified in clean air laws around the world, including U.S EPA 40 CFR Part 75 and 40 CFR Part 60, we help you meet data reporting requirements, maintain emissions compliance, and ensures certification and compliance with your local and international regulatory agencies.

RosemountAnalytical_Certificate_Testing_for_CEMS

Typical Components Monitored

  • Sulfur Dioxide (SO2)
  • Nitrogen Monoxide (NO)
  • Nitrogen Dioxide (NO2)
  • Carbon Dioxide (CO2)
  • Oxygen (O2)
  • Carbon Monoxide (CO)
  • Total Hydrocarbon (THC)
  • Hydrogen Sulfide (H2S)
  • Opacity
MON2000 & MON2020 Series software makes configuration, monitoring and operation of your Rosemount Analytical Chromatograph quick and easy.

  • Danalyzer RAI 1500XA

    View Data Sheet and Specs

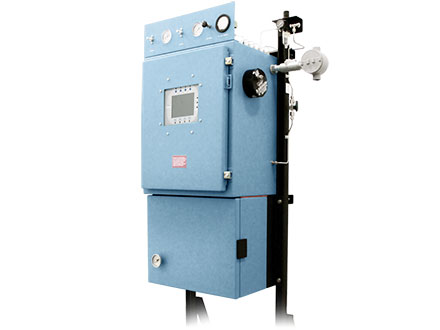

    The 1500XA Gas Chromatograph is an air-bath style GC engineered for complex applications requiring multiple detectors and parallel chromatography. The 1500XA is ideal for your natural gas processing applications where instrument air is available and requires higher oven temperatures than are available in a heat-sink design. As with other Danalyzer’s, the 1500XA is rated for 0 to 130 °F (-15 to 55 °C) operation, providing the most stable analysis for an air-bath oven and reducing your installation and utility costs significantly.

    BTU and 0-300 PPM H2S measurements are used for EPA Federal Regulation 40 CFR part 60, subpart Ja compliance where Continuous Emissions Monitoring Systems are required by the EPA.

    Read More »

  • GSP_GC_Prev_370XA_Pole_Mounted_740x540

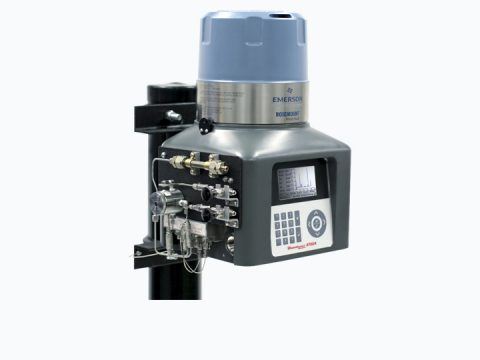

    The Danalyzer 370XA is designed to simplify natural gas measurement analysis in Fiscal and Custody Transfer applications and improve the measurement performance of your C6+ BTU/CV analysis.

    A unique benefit to the 370XA is its Maintainable Module™ technology, which allows the operator to easily replace the GC module in the field in under two hours, greatly reducing downtime and overall operating costs.

    For additional information, please visit RosemountAnalytical.com

    Read More »

  • GSP_GC_Prev_Model_500_740x540

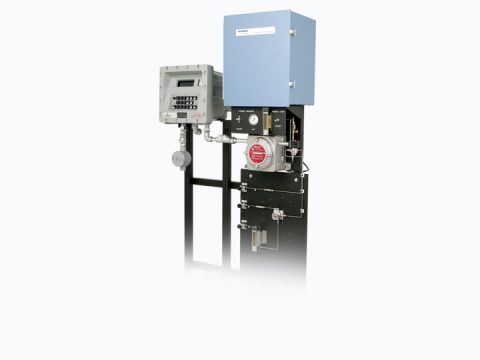

    The Danalyzer 500 Gas Chromatograph is the industry’s most trusted analyzer for natural gas custody transfer applications. This air-less heat-sink style GC has a unique “open-oven” design that is also ideal for very rich gases or natural gas liquids (NGL) that require very high temperature heating for the sample lines.[…]

    Read More »

  • Model 770XA

    View Data Sheet and Specs

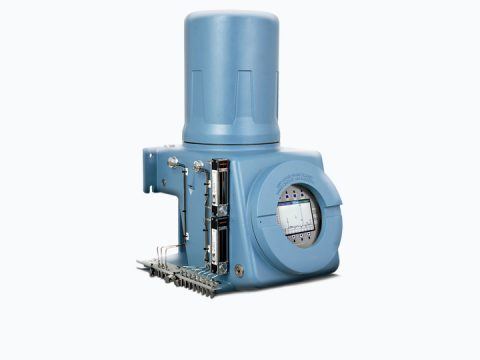

    The Danalyzer 700XA Gas Chromatograph is an air-less heat-sink style gas chromatograph with dual-detector/parallel analysis capabilities in a rugged explosion-proof housing suitable for installations in extreme conditions. The 700XA Gas Chromatograph provides you the most accurate custody transfer measurement available with extended analysis options (including the C9+ with hydrocarbon dew point calculations) for complex natural gas measurement.

    Read More »

  • A+ Genie Probe Regulator (GPR)

    The GPR™ consists of a housing and a membrane-tipped probe regulator. The housing is installed in a depressurized pipeline through a vertically mounted thread-o-let or flange, and contains a “foot valve” in its lower end. Inserting the probe into the housing opens the “foot valve”, allowing pipeline gas to flow[…]

    Read More »

  • davis and davis slider

    ANALYZER BUILDING: Single or Multi-Room, Class 1 Div 1,2 Analyzer Shelters/CEMS Integration Packages are delivered with full electrical, tubing and testing, ready for installation and operation. We provide technical support, start-up and commissioning services with full system documentation on every project we deliver.

    Read More »

  • Bio Gas Sampling System

    The Mustang® Bio-Gas Sample Conditioning System (MBGSCS) is designed for the bio-gas industry to maintain a representative sample of low pressure feed gas. For farm and agricultural waste operations renewable energy programs. REPS, renewable energy credits are available to landfill owners and farmers that are able to produce natural gas[…]

    Read More »

  • Liquid and Gas Sample Probe

    Mustang Certiprobe® for use with Mustang® Pressure Regulating Vaporizer Sampling Systems The Mustang Certiprobe® sample extractor is designed to be the initial access point for pipeline or pressure vessels in LNG, LPG or other process sampling. Certiprobe® sample extractors are fabricated to meet the ANSI B31.3-2004 process piping standard and include[…]

    Read More »

  • LNG Vaporizer

    Mustang Intelligent Vaporizer Sample System® – Model 2 The Mustang Intelligent Vaporizer Sampling System® (Model 2) is a technology designed to vaporize liquid natural gas (LNG) providing a fresh sample to a continuous online analyzer. This system is designed with enhanced sample quality, through controlled vaporization and remixing, accomplished through[…]

    Read More »

  • RAI 370XA GC Enclosure

    The Danalyzer 370XA is designed to simplify natural gas measurement analysis in Fiscal and Custody Transfer applications and improve the measurement performance of your C6+ BTU/CV analysis.

    A unique benefit to the 370XA is its Maintainable Module™ technology, which allows the operator to easily replace the GC module in the field in under two hours, greatly reducing downtime and overall operating costs.

    For additional information, please visit RosemountAnalytical.com

    Read More »
