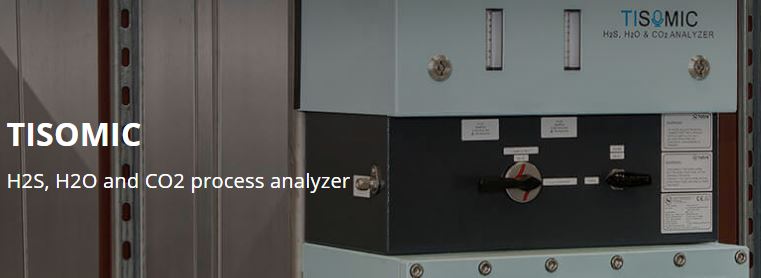

Hobre Tisomic PA TDL Analyzers

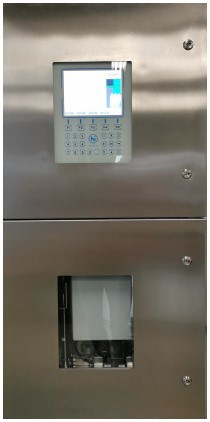

Hobré TISOMIC MKII- Series ( Class 1, Div. 2)
Available models: MKII-W Shark, MKII-WLC Piranha, MKII-1 Marlin, MKII-2 Dolphin, MKII-3 Orca, MKII-4 Moray, MKII-5 Tigerfish, MKII-6 Whale
• H2S ranges from O – 100 or 0 – 10,000 ppmV
• CO2 range from 0 – 30%
• H2O ranges from O – 420 ppmV or 0 to 20 lbs or 5 -420 ppmV or o.25 – 20 lbs
Key Benefits
• Virtually maintenance free
• No interference from glycol methanol or amine contaminants (vapor phase)
• 24 VDC or 99 – 253 VAC, 45-65Hz
• Startup: 200 W; Running: 60 W
• -20oC – +50oC / -4oF – +122oF
• (4) 4 -20mA Analog Output
• MODBUS over TCP/IP or RS-485
• Low flow requirement of 0.4 SLPM means low emissions
