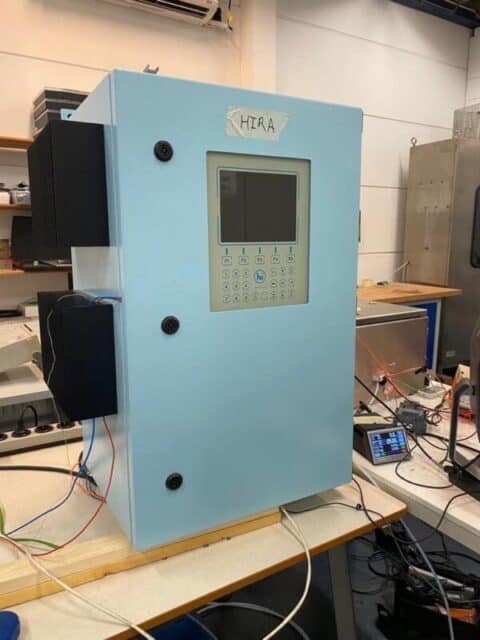

Hobre Prism RAMAN Spectroscopy Gas Analyzer
Hobre Prism RAMAN Spectroscopy Gas Analyzer
Principle of Operation
The Hobré Raman can simultaneously measure C1..C5+, N2, H2, CO, CO2, H2O. Technologically wise, the Hobré Raman is a big step forward as it offers a combination of features not available in any other analyzer on the market, e.g.:
- High accuracy compositional analysis in 10 seconds,
- No moving parts,
- Full separation of detector and electronics,
- Wide concentration range,
- Zero-emission design,
- Lowest lag time and nearly zero dead volume,
- Suitable for high pressure application, without the need for pressure reduction,
- Close to zero maintenance and low spare component costs,
- Only power and purge air are required,
- Hydrogen measurement as a standard (0-100% range) makes it “future proof”,
- Output of physical properties like heating value, Wobbe Index, density, specific gravity, heat ratio Cp/Cv, compressibility, air demand.
